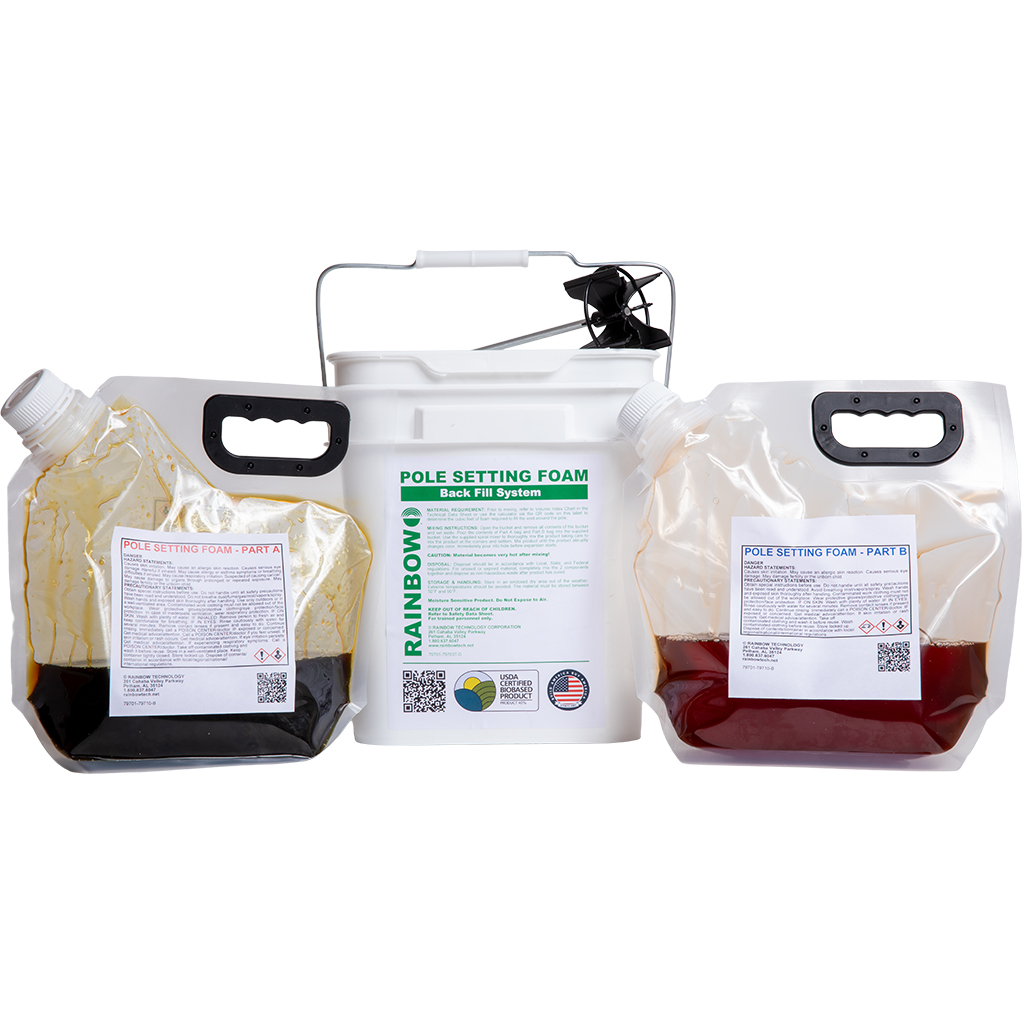

Pole Setting Foam

RTC# 79698, RTC# 79701, RTC# 79702, RTC# 79703, RTC# 79705, RTC# 79706, RTC# 79707, RTC# 79709,

A hydrophobic, two-part polyurethane, expanding foam, designed to rapidly provide intermediate backfill for setting utility poles. It forms a high-density, high-strength foam that can structurally support the pole and maintain its upright positions. Hardware may be strung after 15 minutes. Serves as a barrier impending the migration of preservation materials into the surrounding soil and ground water. Displays excellent adhesion to wood and manufactured poles and does not require the use of primers. Two-year shelf life. Pole Setting Foam can be used not only for setting poles, but is also designed for moisture barrier protection in handholes with large amounts of water present. Expanding foam for use in setting poles or for building a moisture barrier in the cable entry section of a cross connect cabinet. Also reference: 79698 Cardboard Template for Moisture Barrier Kit used with Pole Setting Foam for building moisture barrier in the cable entry section of a cross connect cabinet. Place template in handhole opening and pour foam. Instructions for installing the Moisture Barrier Kit available as a PDF download on this page. Pole Setting Foam saves money and increases efficiency. It replaces traditional methods of backfilling distribution poles, transmission poles, and decorative street lighting during installation. Pole Setting Foam is a hydrophobic, two-part polyurethane foam, that expands to fill the peripheral void between a utility pole and the hole. It forms a high-density, high-strength foam that can structurally support the pole and maintain its upright positioning. Pole Setting Foam also serves as a redundant environmental barrier between the pole material and its surroundings. Pole Setting Foam displays excellent adhesion to most pole materials, including wood poles treated with pentachlorophenol, CCA, ACA, etc. and without the use of primers. After mixing, it foams immediately and reaches 50% of full strength in approximately 3 minutes and 80% within 60 minutes. Once poured, Pole Setting Foam expands approximately 15 times its original volume and sets the pole in 3 minutes, creating a proven solid foundation material. It removes the need to backfill by traditional methods and the “tamping” associated with it. Pole Setting Foam significantly reduces labor requirements as no backfilling is required and hardware can be strung after 15 minutes. Because Pole Setting Foam is hydrophobic, its physical properties will not be affected by wet soil or small amount of standing water in the hole; however, we recommend the standing water does not exceed 2 inches with the structure in the hole.

How much Pole Setting Foam do you need?

Access Our Calculator

Applications

Use Pole Setting Foam for:

  • New Poles – Transmission & Distribution
  • Leaning Poles
  • Street Lighting Poles
  • Dusk-to-Dawn Light Poles
  • Gate & Fence Posts
  • Highway DOT Sign Posts
  • Pad Leveling
  • Not Recommended for Home/Personal Use
Rainbow Number Container Ordering UOM Units/Case Case Weight Case Size
79698Cardboard TemplateCase55.1 lbs50" L x 30" W x 1" H
797011 Cubic FootKit212 lbs12.5" L x 12.5" W x 12.5" H
797022 Cubic FeetKit112 lbs13.5" L x 8.5" W x 13.0" H
797033 Cubic FeetKit115 lbs12.5" L x 12.5" W x 12.5" H
797055 Cubic FeetKit128 lbs22.5" L x 15.5" W x 15" H
797066 Cubic FeetKit135 lbs22.5" L x 15.5" W x 15" H
797077 Cubic FeetKit150 lbs22.5" L x 15.5" W x 15" H
797099 Cubic FeetKit154 lbs22.5" L x 15.5" W x 15" H
Superior to stone in resistance to overturning and equal to crushed stone against uplift Eliminates the need to transport heavy rock and stone backfill
Hardens quickly (10 – 15 minutes) with compressive strengths three to four times that of tamped soil Poles are set faster, thus restoring service to the customer quicker and with added strength

Color: Visual
Part A: Light Brown
Part B: Dark Brown
Mixed: Yellow
Working Life
Rise Time: 2 Minutes (ASTM D2237)
Gel Time: 2.5 Minutes – 3 Minutes (ASTM D2471)
Tack Free Time: 5.0 Minutes
Full Cure Time: 12 Hours
Drastic Temperature Change Bonded: Little Chance of Cracking
Performance: (cured)
Density: 5.5 – 6.0 lbs/ft3 (ASTM D1622)
Compressive Strength (psi): 75 Minimum (ASTM D1621)
Porosity: >90% Closed-Cells (ASTM D2856)
Water Absorption : 0.02% ASTM D2842
Shear Strength (psi): 42 Minimum (ASTM D732)
Tensile Strength (psi): 64 Minimum (ASTM D1623)
Cohesive Shear (dry): 22.9 psi (ASTM D3080)
Cohesive Shear (wet): 20.9 psi (ASTM D3080)
Chemical Resistance: (ASTM D543)
Water: Excellent
Salt Water: Excellent
Sulfuric Acid 20%: Excellent
Gasoline: Excellent
Diesel Fuel: Excellent
Hydrochloric Acid 20%: Excellent
Ammonium Hydroxide 10%: Good
Sodium Hydroxide, Concentrate: Good
Fungus: Excellent
