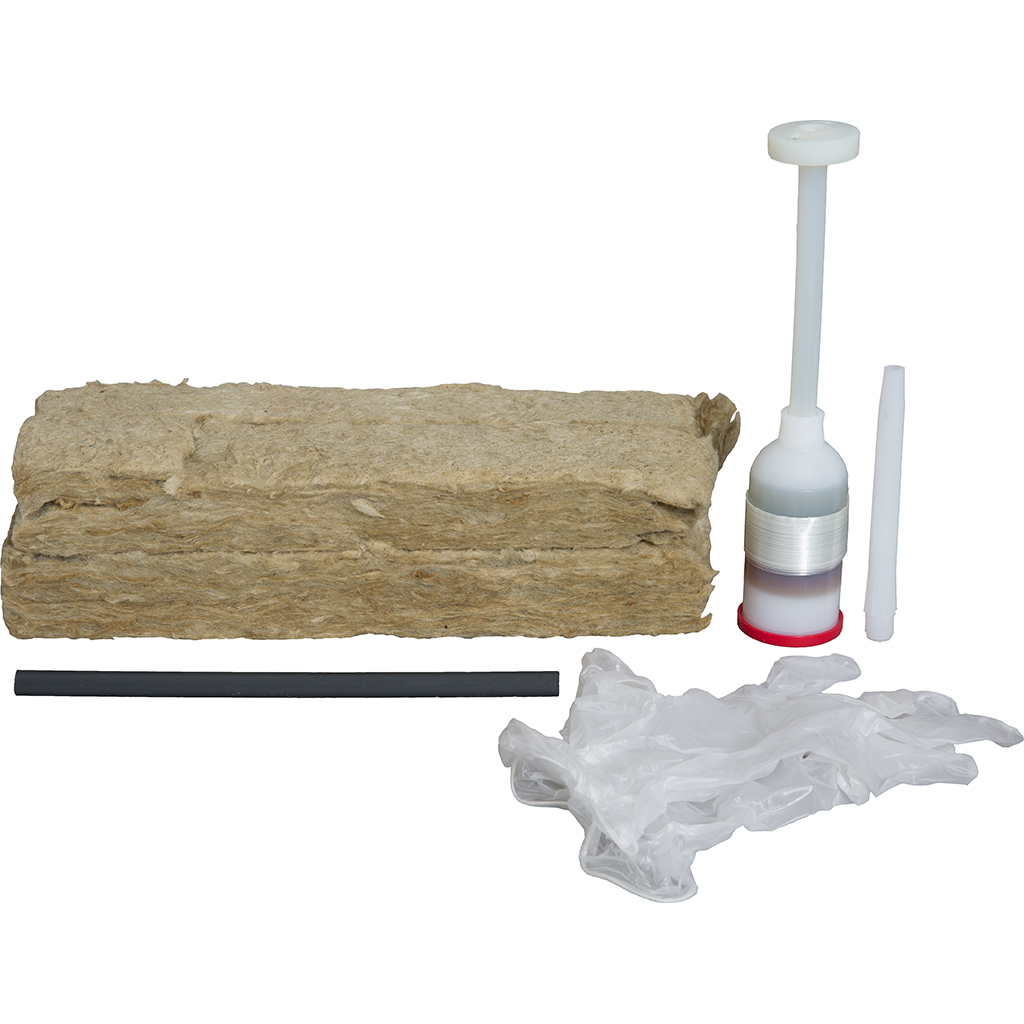

Fire-Retardant Duct Sealing Kit

RTC# 79506, RTC# 79512,

Two-component polyurethane foam used for sealing risers, conduits, ducts, and abandoned gas pipes against water, gas, and debris. Foam is inexpensive, safe, easily installed, and easily removed. Displays excellent adhesion to most surfaces, including all types of conduit and cable sheaths without the use of primers. It reacts 50% of full strength in approximately 3 minutes and 80% within 60 minutes after mixing. No injection gun is needed. Consists of all components required for placing conduit plug to prevent intrusion of water and gases. Duct Sealing Foam will seal virtually any size/type of pipe or conduit including PVC, ABS, metal, or fiberglass. The foam can be easily removed to pull out cable or to open a previously sealed conduit for new cable installation. Unlike other products, the unique water-blown chemistry used in Duct Sealing Foam makes the product safe to use for the installer and friendly to the environment. The specially designed packaging allows for easy mixing and user friendly application. Duct Sealing polyurethane foam is low exotherm, fast setting, easily removable, has excellent electrical properties, and does not contain TDI or MOCA. The Fire-Retardant Duct Sealing Kit displays excellent adhesion to most surfaces, including all types of conduit and cable sheaths, without the use of primers. The kit includes: two-part polyurethane mixing tube, injection barrel, two non-flammable insulating strips, packing rod, gloves, and instructions. The insulating strips are to be packed between the cables and the conduit and will contain the liquid resin while it expands. The packing rod is used to assist in packing the foam strips in conduit and around cables. The non-flammable insulating strips are used as packing strips in our Fire-Retardant Duct Sealing Kit. Each strip measures 1 1/2″ x 24″ x 1/2″. These strips are made of mineral wool and when used as part of our kit, provides a fire-retardant facing to seal conduits. These insulating strips are recommended for service temperatures up to 1200°F and have a melt point in excess of 2000°F.

Applications

Use Fire-Retardant Duct Sealing Kit for:

  • Vaults
  • Wire Chases
  • Power Generation Plants
  • Pipes
  • Conduits
  • Manholes
  • Central Offices
  • Wall Penetrations
  • Floor Penetrations
Rainbow Number Container Ordering UOM Units/Case Case Weight Case Size
795066 oz KitCase1210 lbs10.5" L x 10" W x 15.5" H
795122 oz KitCase127 lbs12" L x 13" W x 13" H
Convenient packaging No injection gun required
Easily removable Faster re-entering time
Tough and flexible Holds up to harsh environments – will not crack

Viscosity:
Part 1: 9,000 – 11,000 cps
Part 2: 9,000 – 11,000 cps
Mixed: 9,000 – 11,000 cps
Color:
Part 1 (Polyol): Beige
Part 2 (Isocyanate): Tan
Mixed: Light Yellow
Mixing Ratio:
By Weight: 90.5 / 100
By Volume: 1:1
Gel Time: 2.5 minutes
Tack Free Time: 5 minutes
Full Cure Time: 12 hours
Foam Density: 6-7lb/ft
Pressure Tolerance: When Plugging Conduit > 10 psi
