Voltage Tester

RTC# 72994,

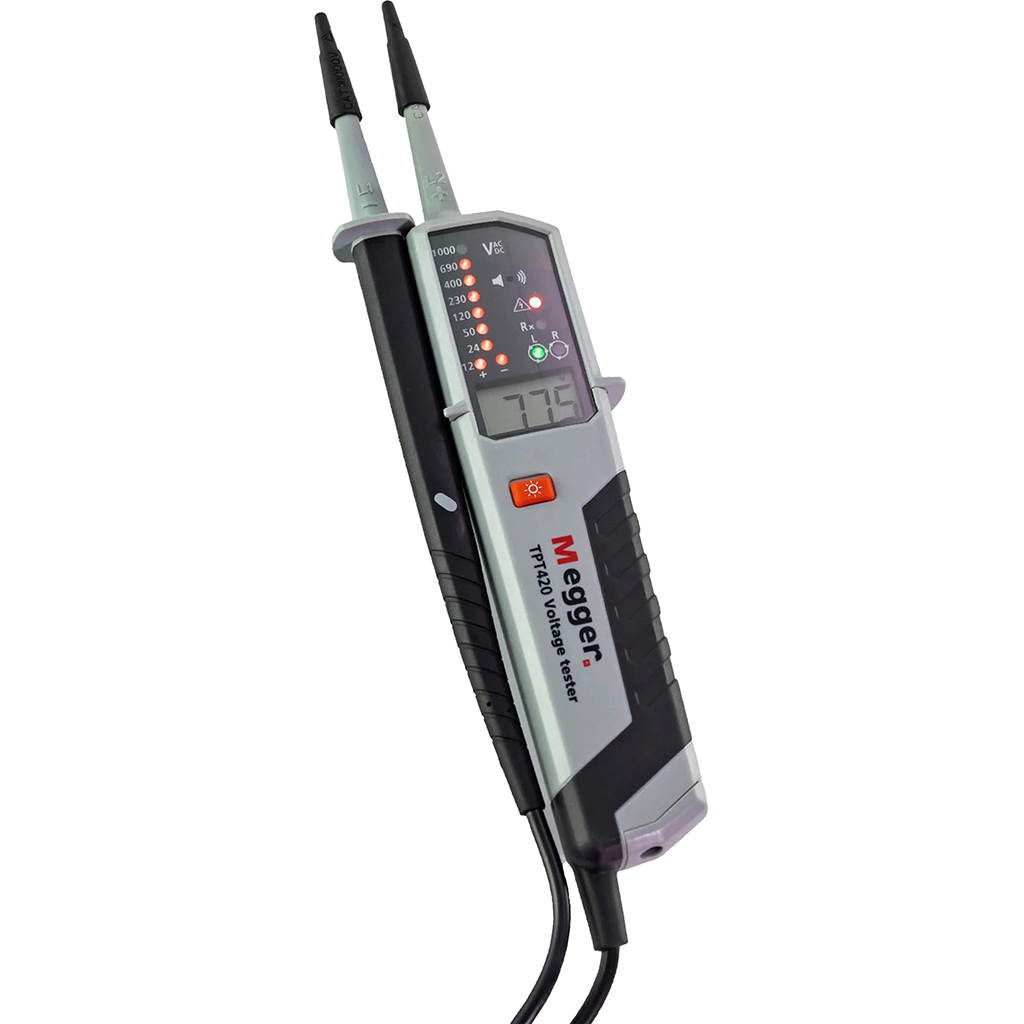

The Megger TPT420 voltage tester is designed to provide electricians and electrical engineers with an easy to use voltage indicating instrument. The meter will continue to warn the operator of dangerous test voltages even when the batteries are exhausted.

With both LCD and LED displays, the TPT420 provides both AC and DC voltage measurement – from 12 to 1000 V AC and up to 1500 V DC. In addition, a continuity function within the range 0 to 500 kilohms, is included and for added safety, continuity and voltage measurements are also accompanied by an acoustic sounder.

A bright, integrated LED torch aids the operator when working in poorly lit environments. When testing between phase and earth on any circuit protected by an RCD, RCBO and Safety Breaker, the TPT420 is designed to work below the tripping threshold of these devices to help avoid unintentional disconnection.

The phase rotation indication test has been simplified, which now avoids the crossing of the test probes, adopted by some 2 pole testers. The TPT420 can also perform a single pole voltage indication test.

With safety in mind, the TPT420 is rated at CAT IV 1000 V with an IP64 housing and conforms to the latest IEC/EN 61243-3 and DIN VDE 0682-401 standards.

For compliance, GS38 probe tip shrouds are provided as standard, along with a protective storage and carry pouch.

Applications

Although designed for testing within electrical installations, the unit can be used in almost any application where voltage and continuity measurements are required, including automotive, fire alarm and solar/PV systems.
Rainbow Number Container Ordering UOM Units/Case Case Weight Case Size
72994Voltage TesterEach10.5 lbs

CAT IV / 1000 V
IP64 Rated
AC/DC Voltage tester
12…1000 V AC
12…1500 V DC
LED and LCD Display
Continuity test function with visual and acoustic indication
Voltage indication with no batteries
Single pole voltage test
Phase rotation indication
Integrated torch light
